Longboard Drop Kit — Low Ride Height Brackets for Improved Stability

Sold by HighFiveSkateShop — Authorized Retailer. Original product by Loaded Boards.

The longboard drop bracket kit lowers your board approximately 1.5" below traditional top-mount height, shifting your center of gravity closer to the ground for a more planted, controlled ride feel. This geometry change is particularly noticeable at speed and during slides, where a lower stance reduces the leverage forces acting on your trucks through transitions.

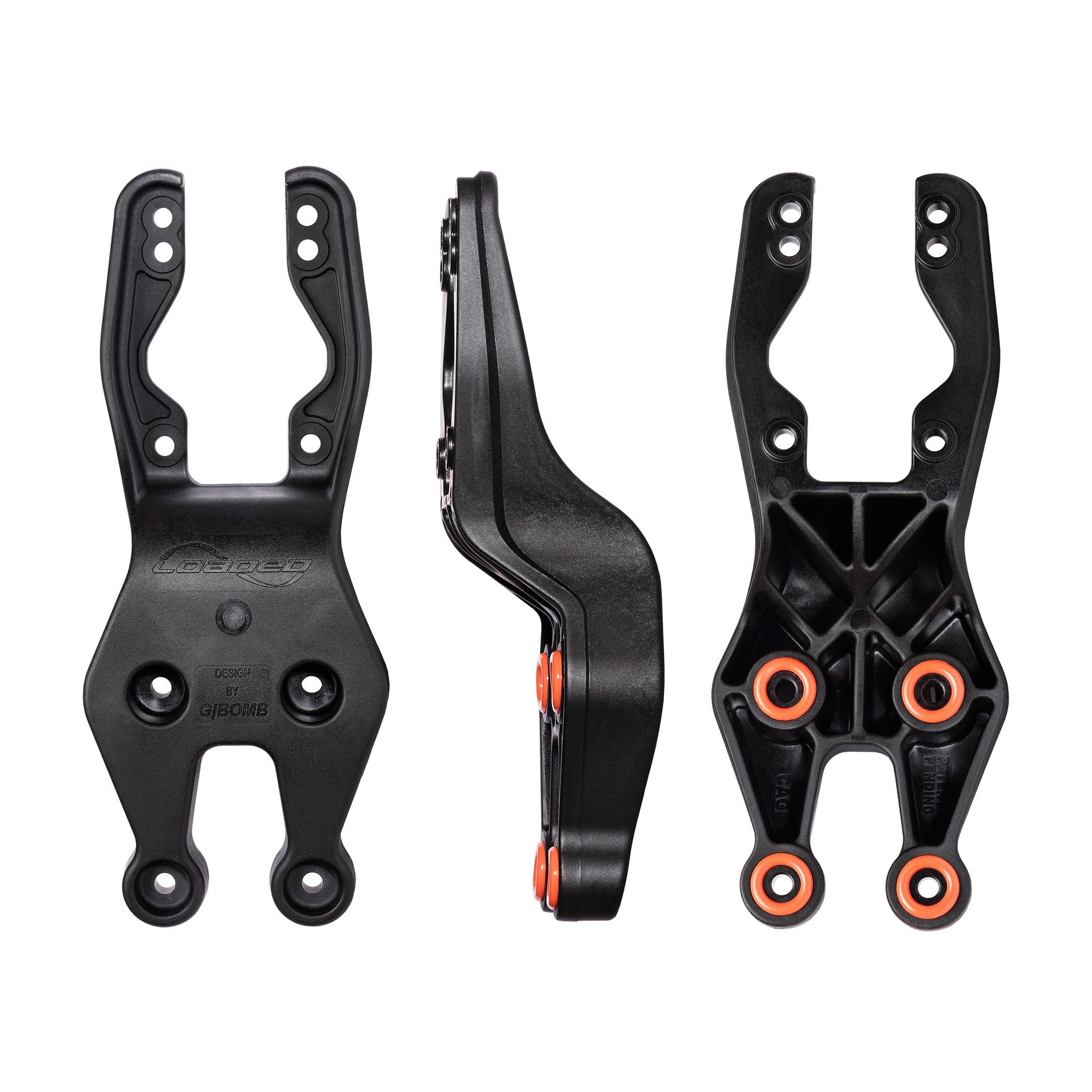

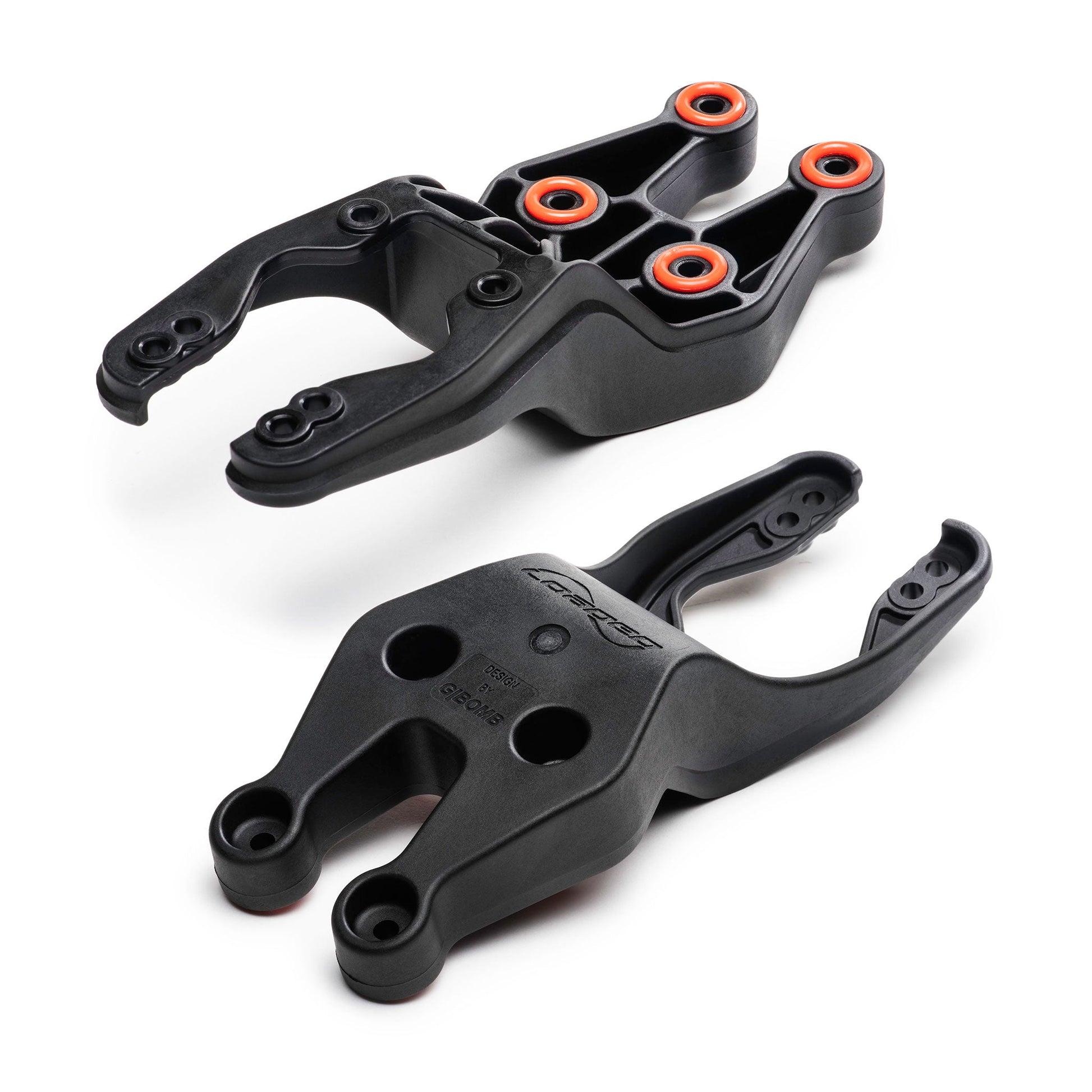

The brackets are molded from fiber-reinforced automotive-grade resin — a material chosen for its resistance to flex, impact, and UV degradation. The resin construction absorbs vibration and maintains its shape under repeated load. Eight urethane O-ring dampeners are integrated into the mounting points, reducing road buzz transmitted from the trucks to the deck.

The bracket geometry accommodates wheels ranging from 75mm to 105mm in diameter, giving you flexibility to run a wide range of wheel setups without risking wheel bite. Compatibility extends to 150mm through 180mm reverse kingpin trucks, covering most standard longboard truck widths on the market.

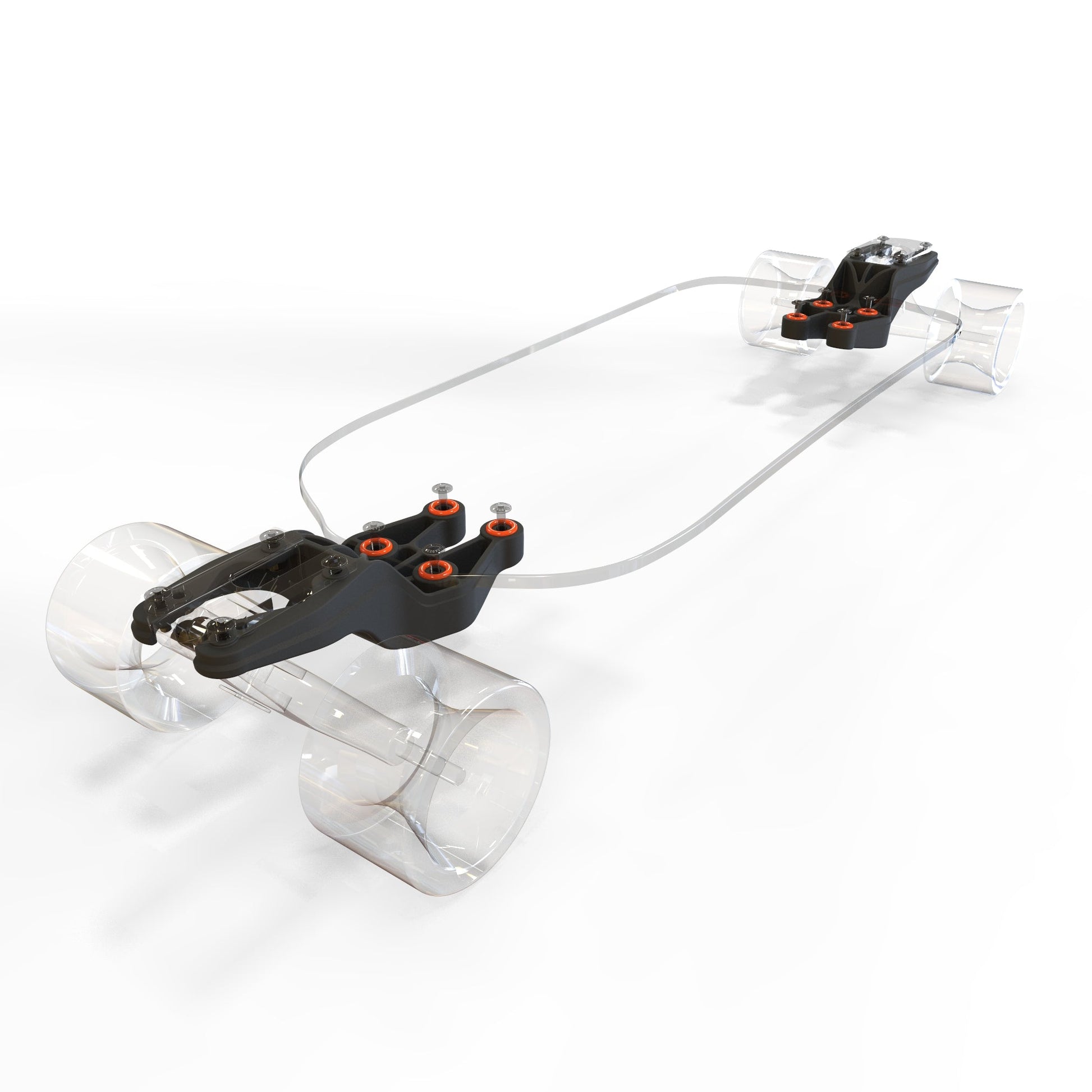

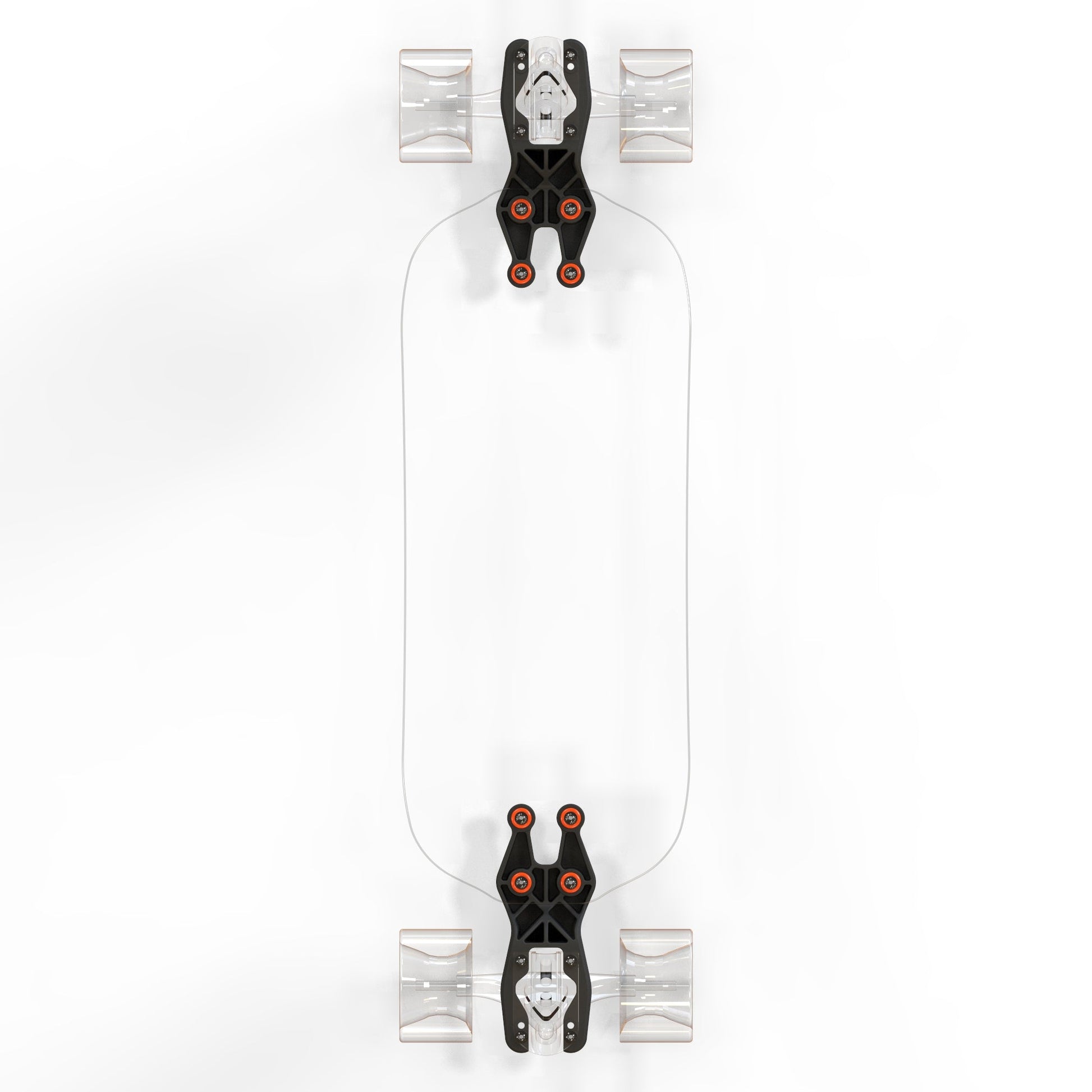

Installation uses standard hardware and does not require drilling or modification to your deck. The brackets mount between the baseplate and the deck surface, replacing the standard riser pad position. Weight capacity is rated at 250 lb / 113 kg.

The compact footprint — 8.25" x 3.25" x 2.25" per bracket — keeps the setup low-profile. At approximately 0.875 lb per set, the added weight is minimal relative to the ride geometry change they provide. Compatible with most standard longboard decks with standard truck mounting hole patterns.

Specs:

• Drop height: ~1.5" below top-mount
• Material: Fiber-reinforced automotive-grade resin
• Dampeners: 8 urethane O-rings
• Wheel compatibility: 75–105mm diameter
• Truck compatibility: 150–180mm reverse kingpin
• Dimensions: 8.25" x 3.25" x 2.25"
• Weight: ~0.875 lb per set
• Weight capacity: 250 lb / 113 kg
• Color: Black
• Age Group: Adult

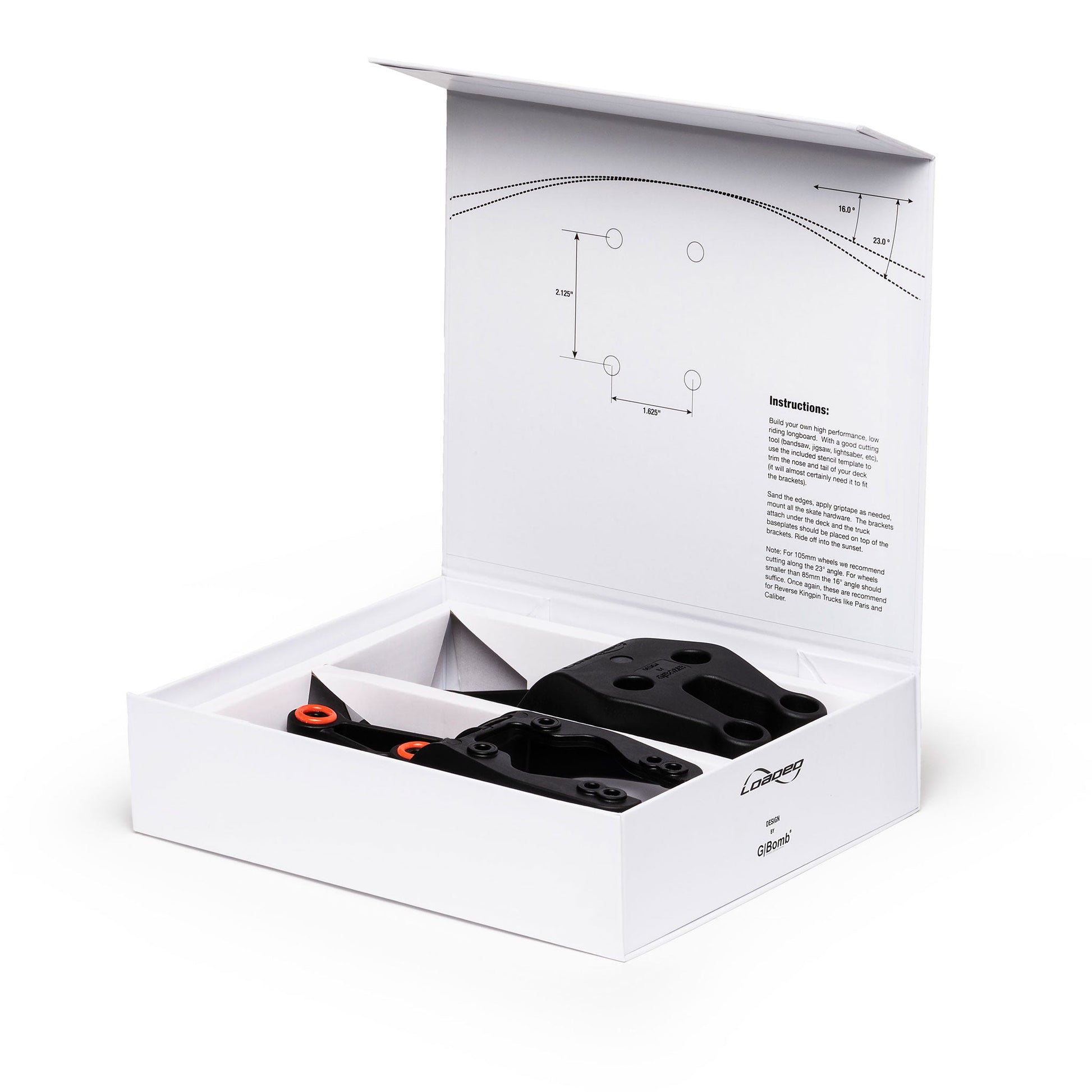

Hardware included. Sold as a pair (two brackets).
